Raspi-Setup

Hardware setup on Raspberry Pi requires the following equipment:

  • Joy-IT SBC-PIR BIS0001 Motion Sensor

  • Raspi-Cam Electreeks E-RS015

  • Raspi-Cam Case Electreeks Komplex I

  • 1m/2m Electreeks FFC Ribbon-Cable AWM 20624 80C 60V VW-1

  • Red notification LED with current limiting resistor (optional)

  • Raspi T-Cobbler (optional)

⚠️ Be careful not to use a HC-SR501 Motion Sensor, it can be really hard to adjust the re-triggering on this sensor. Make your life easy by using SBC-PIR BIS0001 or similar.

Schematics

_images/raspi_schematics.png

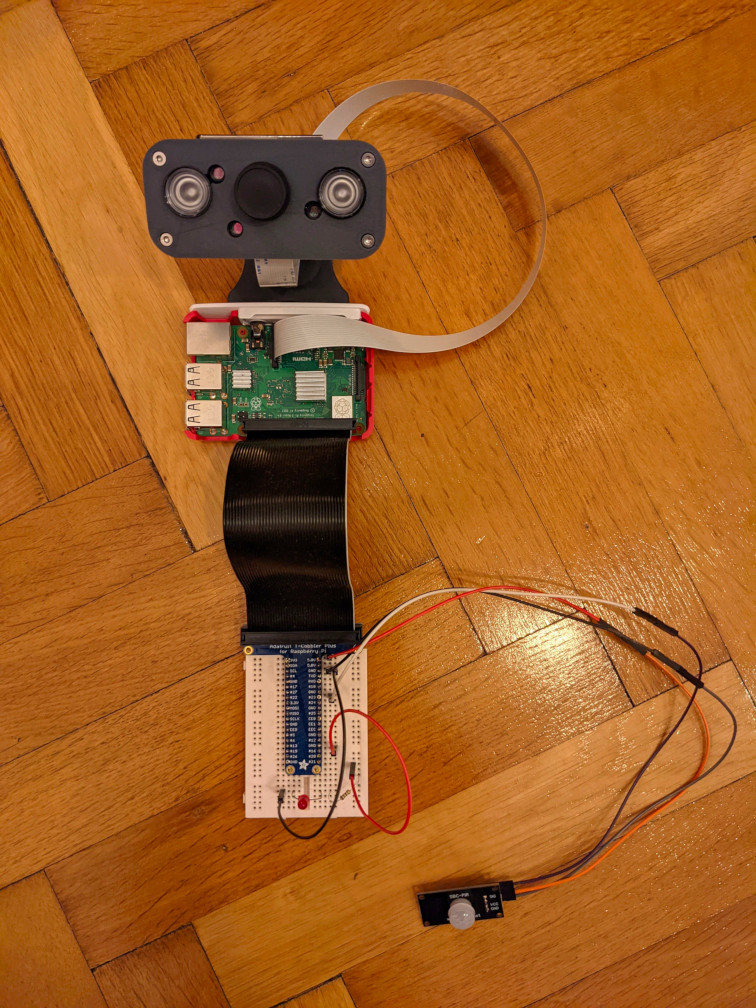

Picture of the setup

_images/raspi_setup.jpg
